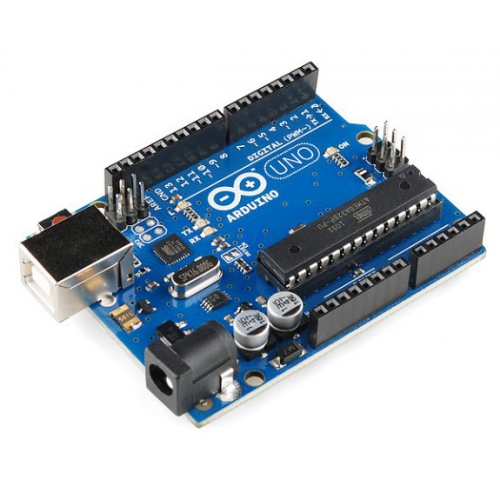

ARDUINO UNO R3
UNO R3
Product Name :- ARDUINO UNO R3
Cat No./ Model No :- ARDUINO UNO REV3
Type :- Arduino Uno Rev3
ARDUINO UNO R3
ARDUINO UNO REV3
ARDUINO UNO REV3
The Arduino UNO is the best board to get started with electronics and coding.
If this is your first experience tinkering with the platform, the UNO is the most robust board
you can start playing with. The UNO is the most used and documented board of the whole
Arduino family.
Description

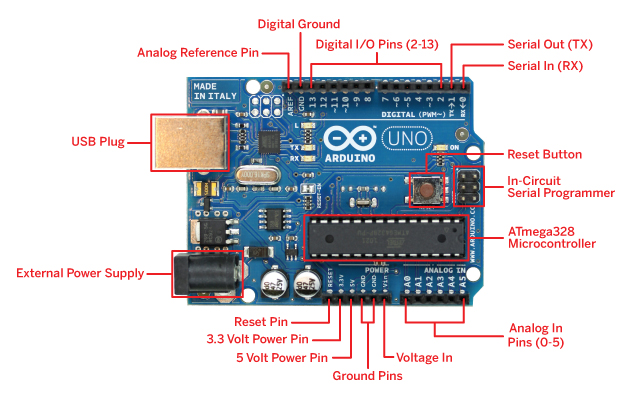

Arduino Uno Specification
- Microcontroller: ATmega328P
- Operating Voltage: 5V
- Input Voltage (recommended): 7-12V
- Inout Voltage (limit): 6-20V
- Digital I/O Pins: 14 (of which 6 provide PWM output)
- PWM Digital I/O Pins: 6
- Analog Input Pins: 6
- DC Current per I/O Pin: 20 mA
- DC current for 3.3V Pin: 50 mA
- Flash Memory: 32 KB (ATmega328P) of which 0.5 KB used by bootloader
- SRAM: 2 KB (ATmega328P)
- EEPROM: 1 KB (ATmega328P)
- Clock Speed: 16 MHz
- LED_BUILTIN: 13
- Length: 68.6 mm
- Width: 58.4 mm
- Weight: 25 g
ALSO AVAILABLE in ARDUINO MEGA 2560, NANO, UNO SMD
